14 September, 2010

Journey of Android Development -- Installed on Phone

After 'cutting my teeth' with the emulator I embarked on installing my simple app on my phone.

A couple setup steps that are worth mentioning for my Samsung Galaxy.

First, you need to enable the USB debugging on the phone. This is done by enabling Settings->Applications->Development->USB debugging

By default, the usb connection is only accessible by the root user. You can leave it in this mode, but the consequence is that you'll have to start the adb server as root to attain the permissions to connect to the phone.

$ sudo adb kill-server
$ sudo adb start-server

After you've done this you'll be able to list and connect to the phone as a general user.

$ adb devices
List of devices attached
T9592dbc8xxx device

Now, you're able to connect to your phone in the same manner as the emulator.


13 September, 2010

Journey of Android Development -- First Emulator App

Still trying to get the feel for the development environment. Much of this is likely fully integrated with Eclipse, but Eclipse is historically a resource hog. 'sides, I more of a command line kinda guy.

I authored my very first application that entails multiple buttons and debug logging. The app simply creates three buttons, registers a click handler for each and demonstrates the ability to log to the adb logfile stream.

Feel free to download it here.

You may also find the Makefile useful, which supports:
1) setting up the environment (ie. starting AVD and logcat utility)
2) rebuilding the project
3) reinstalling and remotely starting the app on the emulator
4) cleanup

The project assumes you've greated an AVD called myAVD.


12 September, 2010

Journey of Android Development -- Running Apps vi Adb Command Line

Ok, so you're developing the next killer app for Android. If you're anything like me, and pray you aren't, you may find you want to start your app from your development machine via the emulator.

I posted how you can install, reinstall, and uninstall your app in previous posts. This post builds on that.

Issuing an 'adb shell' command essentially executes a shell command on the emulator. If you issue a command you'll execute the command rather than enter an interactive shell.

The Activity/Intent Manager/Messenger tool allows you to start your activity through the adb command line.

The trick is to define the command arguments properly, which is done by pulling relevant information from your AndroidManifest.xml file. You need to specify the proper action and component in your command line, extracted from your Android Manifest.

Given the following AndroidManifest.xml file:

user@debian:~/Buttons$ cat -n AndroidManifest.xml
1 <?xml version="1.0" encoding="utf-8"?>
2 <manifest xmlns:android="http://schemas.android.com/apk/res/android"
3 package="com.example.buttons"
4 android:versionCode="1"
5 android:versionName="1.0">
6 <application android:label="@string/app_name">
7 <activity android:name=".Buttons"
8 android:label="@string/app_name">
9 <intent-filter>
10 <action android:name="android.intent.action.MAIN" />
11 <category android:name="android.intent.category.LAUNCHER" />
12 </intent-filter>
13 </activity>
14 </application>
15 </manifest>

The action is defined in line 10, the component defined as lines 3+7 respectively.

You can start the 'Buttons' activity by specifying the following command:

adb shell am start -a android.intent.action.MAIN -n com.example.buttons/com.example.buttons.Buttons

11 September, 2010

Journey of Android Development -- Install/Reinstall/Uninstall Apps

As I've mentioned in previous posts, I'm starting along a journey of developing applications for the Android phone. I figure I'll likely post some of my findings along the way for your amusement.

The first thing I was kinda surprised at was the fact that the Android Emulators are persistent, meaning that if you install an application it persists through emulator power cycle. Sure, sure it's certainly understandable that they are attempting to emulate a true phone which persists through power cycle but I was surprised this was the default behavior.

The relevance is that in the fashion of incremental development you'll find yourself coding a little, testing a little,... That manner requires you to install your app numerous times for testing. You'll quickly find that you need to uninstall the previous version to install the latest.

You install your app by applying a command similar to the following:

user@debian:~/Buttons$ adb -s emulator-5554 install ./bin/Buttons-debug.apk
98 KB/s (4384 bytes in 0.043s)
pkg: /data/local/tmp/Buttons-debug.apk

An attempt to reinstall will fail due to the application already existing.

user@debian:~/Buttons$ adb -s emulator-5554 install ./bin/Buttons-debug.apk
98 KB/s (4384 bytes in 0.043s)
pkg: /data/local/tmp/Buttons-debug.apk

You can remedy that by forcing an overwrite.

user@debian:~/Buttons$ adb -s emulator-5554 install -r ./bin/Buttons-debug.apk
95 KB/s (4384 bytes in 0.044s)
pkg: /data/local/tmp/Buttons-debug.apk

Alternatively, you can remove the application explicitly

user@debian:~/Buttons$ adb shell rm data/app/com.example.buttons.apk

08 September, 2010

Installing Windows XP Unattended with VirtualBox

If you're like me you find that you may wish to experiment with clean installations of WinXp VMs from time to time. Sometimes you wish to modify the VM settings that must be assigned prior to OS installation. Sometimes you just want a clean slate to start from. And other times you've got nothing else to do and "God help you" you just plain love installing operating systems in your spare time. Well, if any of this is true and you'd like to know how to install without baby-sitting this post is for you.

The overall intent is that you can install Xp unattended if you properly populate an answer file on a floppy disk. The installation pulls the specifications from the answer file (winnt.sif).

Step 1 – Creating a Virtual Floppy Disk
user@xion:~$ dd bs=512 count=2880 if=/dev/zero of=~/.VirtualBox/HardDisks/floppy01.img
user@xion:~$ /sbin/mkfs.msdos ~/.VirtualBox/HardDisks/floppy01.img
You may need to install dosfstools package.


Step 2 – Create the Virtual Machine
user@xion:~$ VBoxManage createvm --name AutoInstallXp --register --ostype "WindowsXP"

user@xion:~$ VBoxManage modifyvm AutoInstallXp --memory 1024 --vram 16 --boot1 dvd --boot2 floppy --boot3 disk

Step 3 – Create Hard Drive
user@xion:~$ VBoxManage createhd --filename AutoInstallXp.vdi --size 10240
user@xion:~$ VBoxManage openmedium disk AutoInstallXp.vdi

Step 4 – Attach Hard Disk
user@xion:~$ VBoxManage storagectl AutoInstallXp --add ide --name "Storage Controller"

user@xion:~$ VBoxManage storageattach AutoInstallXp --storagectl "Storage Controller" --port 0 --device 0 --type hdd --medium AutoInstallXp.vdi

user@xion:~$ VBoxManage storageattach AutoInstallXp --storagectl "Storage Controller" --port 0 --device 1 --type dvddrive --medium HardDisks/WinXpInstall.iso

Step 5 – Add Floppy Disk
user@xion:~$ VBoxManage storagectl AutoInstallXp --add floppy --name "Floppy Controller"

user@xion:~$ VBoxManage storageattach AutoInstallXp --storagectl "Floppy Controller" --port 0 --device 0 --type fdd --medium ~/.VirtualBox/HardDisks/floppy01.img

Step 6 – Populate Unattended Answer File
Copy the example answer file to the floppy image and update the ProductKey field value. This can be done by mounting the floppy image as root and copying the contents as follows:
# mount -o loop .VirtualBox/HardDisks/floppy01.img /mnt
# cp winnt.sif /mnt
# cat /tmp/winnt.sif



OrgName="nona ur business"

; Command0=%SystemRoot%\system32\cmd.exe




Step 7 – Add CDRom
user@xion:~$ dd if=/dev/sr0 of=~/.VirtualBox/HardDisks/WinXpInstall.iso
user@xion:~$ VBoxManage openmedium dvd WinXpInstall.iso
user@xion:~$ VBoxManage storageattach AutoInstallXp --storagectl "Storage Controller" --port 0 --device 1 --type dvddrive --medium HardDisks/WinXpInstall.iso

Step 8 – Start the VM
user@xion:~$ VBoxManage startvm AutoInstallXp

05 September, 2010

Stitching Mpeg Videos Together

Start with a video stream captured from your good 'ole television and you'll likely wanna remove the commercials. This act essentially requires you to split the video, less the commercials, into segments and them stitching them back together.

Relatively easy, break into video segments (minus the commercials)

$ ffmpeg -i Desktop/Futureweapons\ -\ \'\'Maximum\ Impact\'\'\ \(Recorded\ May\ 4\,\ 2006\,\ DSC\).mpg -ss 0 -t 10 /var/tmp/out1.mpg
$ ffmpeg -i Desktop/Futureweapons\ -\ \'\'Maximum\ Impact\'\'\ \(Recorded\ May\ 4\,\ 2006\,\ DSC\).mpg -ss 10 -t 10 /var/tmp/out2.mpg

Now stitch them together, using the 'cat' utility:

$ cat /var/tmp/out1.mpg /var/tmp/out2.mpg > /var/tmp/out.mpg


01 September, 2010

Android Development Setup -- Debian 5.0 Amd64

I've touted in previous posts that I've recently got a Samsung Galaxy phone, equipped with Android 2.1. The decision was pretty easy as I wanted an Android-based phone to develop applications for.

I'm embarking on establishing the development environment and thought it would be useful to record the steps.

I'm starting with a fresh installation of Debian 5.0 as a VirtualBox Guest. Before we delve into the Android setup I first installed the VirtualBox Additions to get better control of my mouse and keyboard. While not required directly by the Android development they're useful, but only applicable if you're running VirtualBox.

VirtualBox Additions Installation

# apt-get install gcc linux-headers-`uname -r` build-essential

Then select Devices->Install VirtualBox Additions to mount the disc image.

I've always had trouble running the installation script directly from the disc, so I have had to introduce an incremental step of copying to the file system before running.

# cp /media/cdrom0/VBoxLinuxAdditions-amd64.run /tmp
# /tmp/VBoxLinuxAdditions-amd64.run

Then reboot the system for the additions to take effect.

Now the preliminaries are complete, let's get to installing the Android development environment.

Install Sun Java
Update you're repository to utilize the non-free Sun packages.

# echo "deb http://ftp.de.debian.org/debian/ lenny main contrib non-free" >> /etc/apt/sources.list
# apt-get update
# apt-get install sun-java6-jdk sun-java6-jre

Since I'm running an AMD64 kernel I need to install the 32-bit libaries.

# apt-get install ia32-libs

Lastly, you need to ensure you're running the Sun Java utilities and not the Gcc versions. To ensure this, remove any unnecessary Gcc Java packages and ensure the symbolic links for the relevant Java utilities are pointing to the Sun packages.

# apt-get remove gcj-jdk
# update-alternatives --config javac
# update-alternatives --config java

On each of the update-alternatives ensure the selection is pointed toward the .../java-6-sun/... version. This killed me in my first attempt as the symbolic reference for the 'java' utility was pointing to '/usr/lib/jvm/java-gcj/jre/bin/java' and bad things happened (e.g. Null References when installing Android targets). Moral of the story, "check this".

Android SDK installation
Alright, we're ready to install the SDK having set up the Java environment.

Notice I'm running as a general user and will be installing in my home directory.

$ wget http://dl.google.com/android/android-sdk_r06-linux_86.tgz
$ tar -xvf ./android-sdk_r06-linux_86.tgz

Next, install the platforms by issuing the following command and selecting "SDK Platform Android 2.1 API 7, revision 1' (in my case anyway as my Galaxy is a Android 2.1 based). Then select the 'install' button. Then, exit as we'll proceed on with the command line.

user@debian:~$ ./android-sdk-linux_86/tools/android update sdk

You'll next need to create an Android Virtual Device. Note, the target 6 specifies an Android 2.1 target, applicable for my phone.

$ ./android-sdk-linux_86/tools/android create avd --target 6 --name myAvd

Create a new Android project by issuing the following command:

$ $ ./android-sdk-linux_86/tools/android create project --package com.example.helloandroid --activity HelloAndroid --target 2 --path ~/HelloAndroid

You'll find the example primed with a main routine:

user@debian:~$ cat /home/user/HelloAndroid/src/com/example/helloandroid/HelloAndroid.java
package com.example.helloandroid;

import android.app.Activity;
import android.os.Bundle;

public class HelloAndroid extends Activity
/** Called when the activity is first created. */
public void onCreate(Bundle savedInstanceState)

Now you're ready to compile this no-op application and run in the emulator.

This is the point I realized that Android development requires Ant, so I installed the package.

# apt-get install ant

You'll see that a build.xml file exists, the source for the Ant build.

user@debian:~$ cd /home/user/HelloAndroid/
user@debian:~/HelloAndroid$ ls
AndroidManifest.xml build.xml local.properties
bin default.properties res
build.properties libs src

Build the target by issuing 'ant debug' from the project directory.

user@debian:~/HelloAndroid$ pwd
user@debian:~/HelloAndroid$ ant debug

The result is an *.apk file in the bin directory; this is the executable you'll be running in the emulator.

Running in the Emulator
You're last steps are to start the AVD and install the application within it.

Start the AVD by issuing the android tool, selecting the AVD, and clicking on the start button. In a few seconds you should get a virtual phone presented on the screen.

$ /home/user/android-sdk-linux_86/tools/android

In another window/terminal, you can list the available devices by issuing the following command. You should be met with a list that includes the AVD you just started.

$ /home/user/android-sdk-linux_86/tools/adb devices

Almost there; final steps are to install your app and run it.

user@debian:~/HelloAndroid$ /home/user/android-sdk-linux_86/tools/adb -s emulator-5554 install ./bin/HelloAndroid-debug.apk

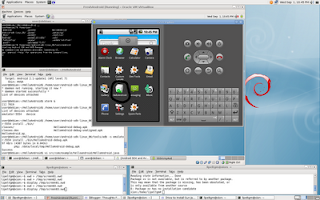

Running the application just like you would on your phone, navigate to the applications and click on it.

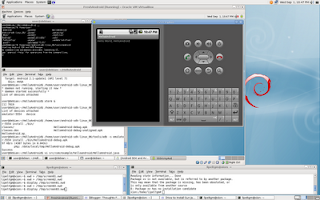

As you can see, you get a 'Hello World, HelloAndroid' on the screen. Not too exciting. If you're interested, and you should be, you'll find the text reference in the ~/HelloAndroid/res/layout/main.xml file.

Keep your stick on the ice.

Ellusive 'Error: java.lang.NullPointerException' for Android Development Installation

I just spent some time debugging why my android development setup was failing on Debian 5.0

I repeatedly got a "XML verification failed for https://dl-ssl.google.com/android/repository/repository.xml.Error: java.lang.NullPointerException" error.

After navigating to the referenced web site and confirmed it wasn't a web site mis-reference I consulted Google.

A couple forums elluded to updating the SDK and Java, but neither was the case for me. My problem was I failed to configure the Sun packages as the default java compiler. This is done by:

debian:/root# update-alternatives --config java

There are 3 alternatives which provide `java'.

Selection Alternative
1 /usr/bin/gij-4.3
*+ 2 /usr/lib/jvm/java-gcj/jre/bin/java
3 /usr/lib/jvm/java-6-sun/jre/bin/java

Press enter to keep the default[*], or type selection number: 3
Using '/usr/lib/jvm/java-6-sun/jre/bin/java' to provide 'java'.

Next issue a SDK update by issuing the 'android update sdk' command and install the targets.

The symptom of this issue was an unpopulated target list (e.g. 'android list targets' resulting in no targets available).
